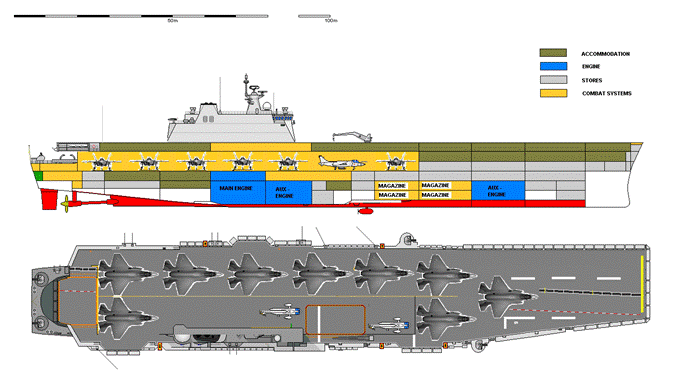

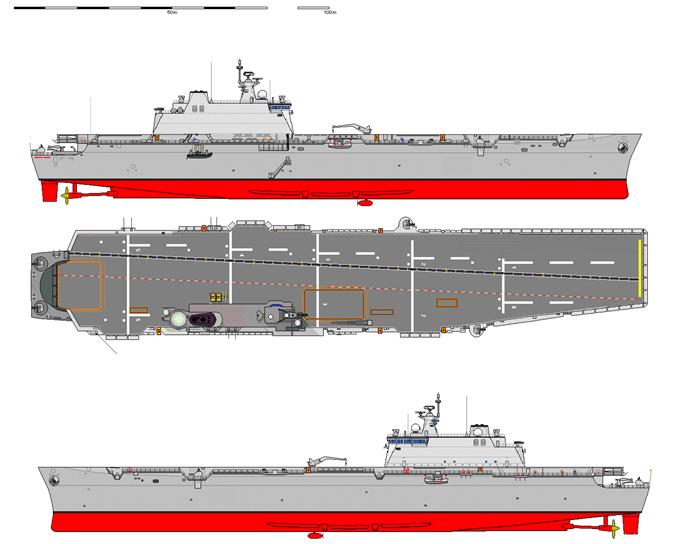

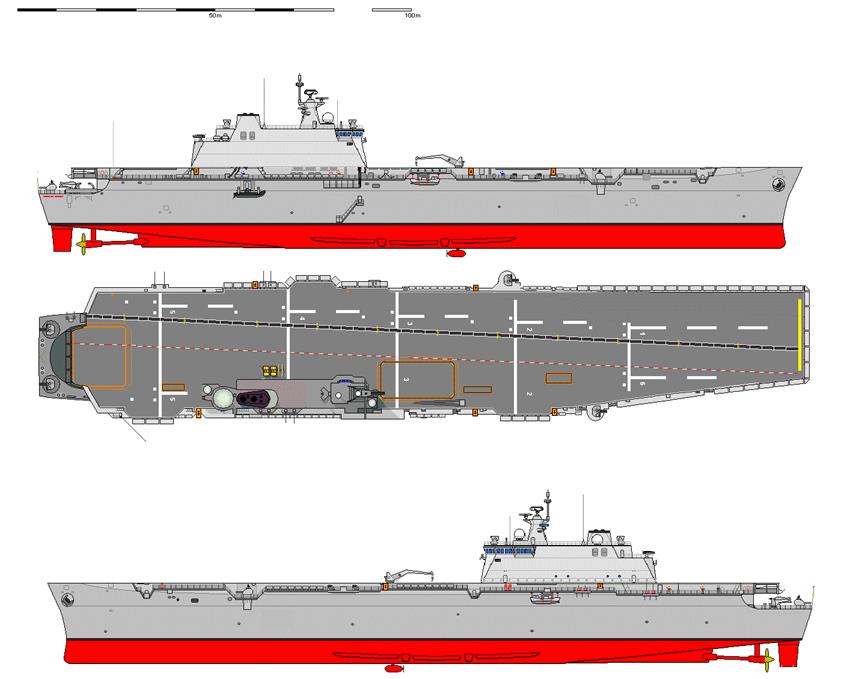

Singapore New F35 Aircraft
Carrier Endurance N-188
Capacity: 16
unit of F35 Aircrafts with 2 Rescues Helicopters
|
|
Displacement:
|
15,912 tons standard,
16,700 tons loaded
|
|
Length:
|
185.9 m (643 ft)
|
|
Beam:
|
24.3 m (80 ft)
|
|
Draught:
|
9.4 m (31 ft)
|
|
Propulsion:
|
2 × Bazan-General Electric LM2500+ gas turbines in COGAG
configuration, one shaft, 46,400 shp
|
|
Speed:
|
26 knots (48 km/h; 30 mph)
|
|
Range:
|
6,500 nautical miles (12,000 km; 7,500 mi) at 20
knots (37 km/h; 23 mph)
|
|
Complement:
|
600 (total); 400 ship crew, 200 air crew
|
|
Sensors and
processing systems:
|
Raytheon SPS-52C/D 3D air search radar,
SC Cardion SPS-55 surface search radar,
ITT SPN-35A aircraft control radar,
FABA SPG-M2B fire control radar,
SELEX Sistemi Integrati
RTN-11L/X missile approach warning radar,
Selex RAN 12 L target designation radar
|
|
Electronic warfare
& decoys:
|
Nettunel electronic countermeasures
unit,
Super RBOC,
Sensytech AN/SLQ-25 Nixie
decoy
|
|
Armament:
|
4 × FABA Meroka Mod 2B CIWS,
12 × Oerlikon L120 20 mm guns
|
|
Aircraft carried:
|
16 fixed wing and 2 rotary wing aircraft
|
|
|
|
